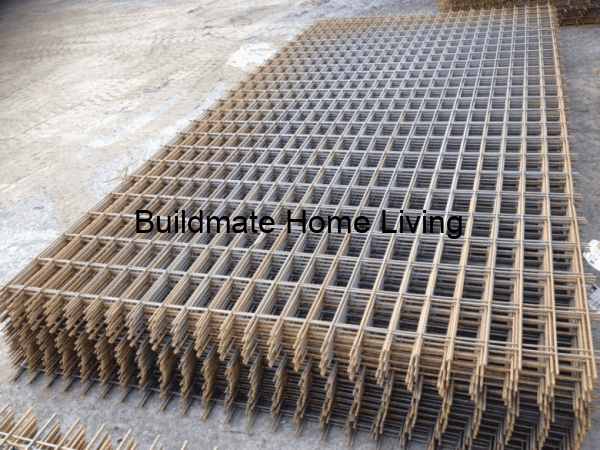

BRC B7 Wire Mesh – High-Quality Reinforcement Mesh 🏗️
📌 What is BRC B7 Wire Mesh?
BRC B7 wire mesh is a premium steel reinforcement fabric used in construction for strengthening concrete slabs, roads, and various structural applications. It is manufactured according to British Standards (BS 4483) and features a main wire diameter of 7mm, ensuring superior durability, load-bearing capacity, and structural integrity.
The B7 wire mesh provides excellent support for reinforced concrete, improving tensile strength and minimizing the risk of cracks and structural failure. Its pre-fabricated design reduces installation time, making it an ideal choice for large-scale construction projects.
📐 Specifications of BRC B7 Wire Mesh
- Fabric Ref. No.: B7
- Standard Reference: BS 4483
- Main Wire Diameter: 7mm
- Cross Wire Diameter: 7mm
- Main Wire Spacing: 100mm
- Cross Wire Spacing: 200mm
- Cross-Sectional Area (Main/Cross Wire): 385mm²/m & 193mm²/m
- Mass Per Unit Area: 4.53 kg/m²
- Mass Per Standard Sheet (2.2m x 6m): 59.80 kg
🔄 BRC BS vs. CQ Wire Mesh – What’s the Difference?
BRC wire mesh is available in two main grades: BS (British Standard) and CQ (Commercial Quality).
- BS Wire Mesh ✅ – Manufactured according to BS 4483 standards, ensuring compliance with engineering and structural requirements. It is ideal for reinforced concrete, roads, and heavy-duty structures.
- CQ Wire Mesh ⚠️ – A lower-grade alternative used for non-load-bearing applications such as fencing, temporary barriers, and light-duty structures.
For high-strength reinforcement and durability, BRC BS wire mesh is the preferred choice.
🏗️ Where to Use BRC B7 Wire Mesh?
BRC B7 wire mesh is widely used in various construction applications, including:
- Concrete slabs (residential & commercial floors)
- Road pavements & highways
- Reinforced concrete walls
- Precast concrete structures
- Industrial and warehouse flooring
- Tunnel linings & bridge decks
- Drainage and water containment structures
- Foundation reinforcements
🔍 People Also Ask (Q&A):
1️⃣ What is the difference between BRC A and B series mesh? – The A series has uniform spacing (200mm x 200mm), while the B series has closer main wire spacing (100mm x 200mm) for added strength.
2️⃣ How do you calculate BRC wire mesh weight? – Multiply the mass per unit area (kg/m²) by the total area required in square meters.
3️⃣ Where can I buy BRC B7 wire mesh? – It is available at construction suppliers, hardware stores, and online platforms specializing in reinforcement materials.
4️⃣ What are the benefits of BRC reinforcement mesh? – Provides high strength, easy installation, reduces labor costs, and ensures better concrete bonding.
5️⃣ What are the standard sizes of BRC wire mesh? – The most common size is 2.2m x 6m, but custom sizes may be available based on project requirements.
6️⃣ Can BRC B7 wire mesh be used for heavy-duty applications? – Yes, it is suitable for load-bearing structures such as bridges, highways, and industrial buildings.
7️⃣ Is BRC wire mesh rust-resistant? – Standard BRC wire mesh is not rust-proof, but galvanized options are available for extra corrosion resistance.
8️⃣ How does BRC mesh improve concrete reinforcement? – It enhances tensile strength, prevents cracking, and distributes loads evenly across the structure.
9️⃣ Can BRC B7 mesh be cut or bent? – Yes, it can be cut and bent on-site to fit specific design needs, ensuring versatility in construction.
🔟 How much overlap is required when laying BRC wire mesh? – Overlapping should typically be at least 225mm to ensure structural integrity and proper load transfer.
📌 Why Choose BRC B7 Wire Mesh?
✅ High-Strength Steel – Provides superior reinforcement for concrete structures.
✅ BS 4483 Certified – Meets international quality and safety standards.
✅ Pre-Fabricated for Easy Installation – Reduces labor costs and improves construction efficiency.
✅ Cost-Effective – Long-lasting, minimizes material waste, and enhances durability.
✅ Consistent Quality – Manufactured to precise engineering standards for uniformity and reliability.
✅ Improved Crack Resistance – Helps prevent cracks and enhances the longevity of concrete structures.
✅ Versatile Applications – Suitable for residential, commercial, and industrial construction projects.
For more details or to get a quote, contact us today! 📞💬
