🏠 Clip Lock 710 Metal Deck Roofing: Premium Concealed Fixing Roofing System for Modern Buildings in Malaysia

Choosing the right roofing system is one of the most important decisions in any construction project. Whether you are building a factory, warehouse, workshop, commercial building, showroom, petrol station canopy, or modern residential home, the roofing system must provide long-term durability, structural strength, and reliable protection against Malaysia’s challenging weather conditions.

One of the most common problems faced by building owners is roof leakage caused by exposed roofing screws. Over time, rubber washers may deteriorate, screws may loosen due to thermal movement, and water may eventually seep through the fastening points.

This is where Clip Lock 710 Metal Deck Roofing offers a superior solution.

ClipLock 710 is a premium concealed-fixing metal roofing system designed to eliminate exposed screws on the roof surface. Instead of drilling through the roofing sheet, the panels are secured using specially engineered hidden clips beneath the sheet. This creates a cleaner roof appearance, reduces maintenance concerns, and helps minimise one of the most common causes of roof leakage in conventional metal roofing systems.

Today, ClipLock 710 is widely used throughout Malaysia for industrial, commercial, institutional, and residential projects due to its excellent performance, modern appearance, and long service life. Contact Buildmate Home Living Sdn Bhd Bhd

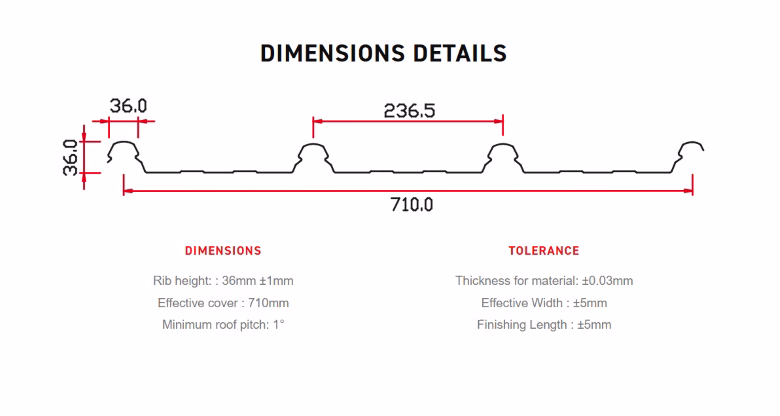

📏 Clip Lock 710 Technical Specifications

📐 Effective Cover Width

710mm

The wider coverage allows fewer roofing sheets to cover the same roof area, improving installation efficiency and reducing overlaps.

📏 Rib Height

36mm

The 36mm rib profile provides excellent structural rigidity while promoting effective rainwater drainage.

📏 Roof Pitch

Minimum 1° Roof Slope

Suitable for low-pitch roofing designs commonly found in factories, warehouses, and commercial buildings.

🏗️ Material

High Tensile Steel Metal Deck Roofing

Manufactured from high-strength steel designed for durability and long-term structural performance.

🔩 Fixing Method

Concealed ClipLock System

No exposed roof screws on the roof surface.

📏 Length

Custom Cut-to-Length Available

Roof sheets can be manufactured according to project requirements to minimise joints and improve installation efficiency.

⭐ Why Choose Clip Lock 710 Metal Deck Roofing?

🔩 No Exposed Roof Screws

One of the biggest advantages of ClipLock 710 is its concealed fixing system.

Traditional metal roofing systems require screws to penetrate directly through the roofing sheet. Over time, these exposed fasteners may become vulnerable to:

• Weather exposure
• Rubber washer ageing
• Roof movement
• Thermal expansion and contraction
• Improper installation
• Corrosion around fasteners

These issues can eventually contribute to roof leakage and increased maintenance costs.

ClipLock 710 eliminates exposed screw penetrations on the roof surface by using hidden clips underneath the roofing sheet.

Benefits include:

✅ Reduced leakage risks associated with screw penetrations
✅ Cleaner roof appearance
✅ Lower maintenance requirements
✅ Improved long-term roofing performance
✅ Better accommodation of thermal movement

This is one of the primary reasons why many consultants, architects, and contractors recommend Clip Lock roofing systems for premium projects.

💪 Strong Structural Performance

ClipLock 710 is engineered with a robust rib profile that provides excellent strength and rigidity.

The profile is designed to withstand:

✔ Heavy rainfall
✔ Strong wind conditions
✔ Daily temperature changes
✔ Long-span roofing requirements

Its structural design allows it to perform well in demanding industrial and commercial environments.

🌡️ Better Thermal Expansion Performance

Metal roofing naturally expands and contracts due to temperature fluctuations.

Unlike conventional exposed-fastener systems, ClipLock 710 allows controlled movement through its concealed clip fixing system.

This helps:

• Reduce stress on roofing sheets
• Minimise distortion
• Improve roof lifespan
• Maintain roof alignment

The result is a more reliable roofing system over the long term.

🎨 Modern Architectural Appearance

ClipLock 710 creates a sleek and professional roof finish because there are no visible screws interrupting the roof surface.

This makes it a popular choice for:

🏢 Commercial buildings
🏬 Shopping centres
🏠 Modern residential homes
🏭 Industrial facilities
🏢 Corporate offices
🏫 Educational institutions

The clean lines and concealed fixing design contribute to a premium architectural appearance.

⚡ Faster Installation

The cliplock system allows roofing panels to be installed efficiently.

Advantages include:

✔ Faster installation speed
✔ Improved alignment accuracy
✔ Reduced installation errors
✔ Lower labour requirements
✔ Better project productivity

For large roofing projects, this can significantly improve construction efficiency.

🏢 Common Applications of Metal Deck Clip Lock 710

Clip Lock 710 is suitable for a wide range of building types:

🏭 Factories
🏬 Warehouses
🏢 Commercial Buildings
🏪 Shop Offices
🏫 Schools and Universities
🏟 Sports Halls
🚚 Logistic Centres
⛽ Petrol Stations
🏠 Residential Homes
🏭 Manufacturing Plants
🏗 Industrial Facilities

Its combination of strength, aesthetics, and durability makes it one of the most versatile roofing systems available.

🔄 Clip Lock 710 vs Conventional Metal Deck Roofing

For building owners seeking long-term reliability and reduced maintenance concerns, Clip Lock 710 is often considered a premium upgrade over conventional metal roofing systems.

❓ People Also Ask About Clip Lock 710 Roofing

What is Clip Lock 710 Roofing?

Clip Lock 710 is a concealed-fixing metal roofing system that uses hidden clips instead of exposed roof screws to secure roofing sheets.

Why is Clip Lock 710 popular in Malaysia?

It helps reduce common roof leakage issues associated with exposed fasteners while providing a clean appearance and excellent long-term performance.

What is the effective cover width of Clip Lock 710?

The effective cover width is 710mm, allowing wider coverage and improved installation efficiency.

What is the rib height of Clip Lock 710?

The profile features a 36mm rib height, providing structural strength and efficient water drainage.

Can Clip Lock 710 be used for wall cladding?

Yes. Besides roofing applications, Clip Lock 710 is also suitable for wall cladding and architectural façade systems.

Is Clip Lock 710 suitable for low-pitch roofs?

Yes. Clip Lock 710 can be used on roof slopes as low as 1 degree, making it suitable for modern industrial and commercial building designs.

Is Clip Lock 710 suitable for residential homes?

Absolutely. Many modern homes use Clip Lock 710 because of its clean appearance, durability, and reduced maintenance requirements.
