TNB CSU Plinth (Precast Concrete Compact Substation Unit)

⚡ TNB CSU Plinth

🧱 Precast Concrete Foundation for Compact Substation Unit (CSU)

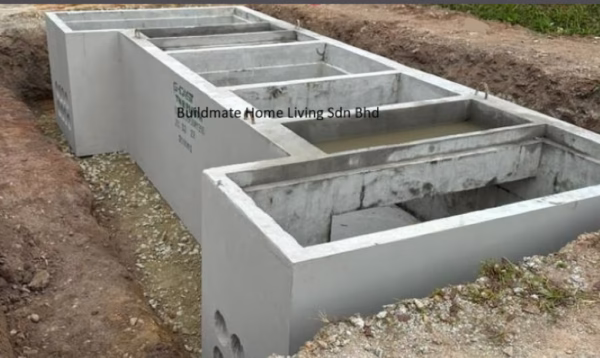

TNB CSU Plinth is a heavy-duty precast concrete base specially designed to support Compact Substation Units (CSU) used in electrical infrastructure projects across Malaysia.

In simple terms, this product acts as the foundation platform for your substation system. Instead of casting concrete on-site—which can be time-consuming and inconsistent—this plinth is manufactured in a controlled factory environment, delivered ready to install, and built to meet TNB requirements.

For contractors, developers, and engineers, this means faster installation, better quality control, and long-term reliability. Contact Buildmate Home Living Sdn Bhd

📌 What is a CSU Plinth? (Simple Explanation)

A CSU plinth is a precast reinforced concrete base that supports electrical substation equipment.

Think of it like this:

👉 If the substation is the “heart” of your electrical system,
👉 then the plinth is the strong foundation that holds everything in place safely.

It also comes with built-in cable openings (ductways) and removable covers, making it practical for both installation and future maintenance.

📦 📊 Complete System Specifications

This is not just a single block — it’s a complete modular system designed for real site conditions.

🧱 Main Plinth Unit

• Size: 6250 × 2550 × 1350 mm
• Quantity: 1 unit
• Weight: Approx. 18 tons

👉 This heavy-duty structure provides the main load-bearing support for the substation.

🧩 Removable Cover Slabs (Cable Access)

• Slab A: 1100 × 150 × 100 mm (15 pcs)
• Slab B: 850 × 150 × 100 mm (15 pcs)
• Slab C: 1700 × 150 × 100 mm (1 pc)
• Slab D: 1700 × 1240 × 150 mm (1 pc)

👉 These covers are designed to be easily removed, allowing:

• Cable inspection
• Maintenance work
• Future upgrades

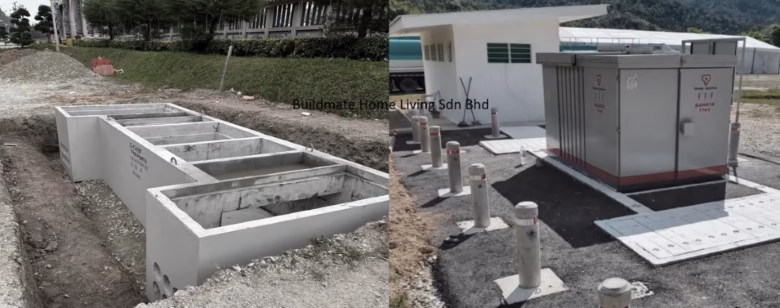

🚧 Protection System (Bollards)

• Bollard Size: 160 × 160 × 1000 mm (14 units)
• Footing Size: 375 × 375 × 450 mm (14 units)

👉 Installed around the plinth to:

• Protect against vehicle impact
• Improve site safety
• Prevent accidental damage

🔧 Key Technical Features

🔌 Built-in Cable Ducting

The plinth comes with multiple duct openings, making cable routing:
✔ Cleaner
✔ Faster
✔ More organized

No need for excessive hacking or modification on site.

🦾 High-Strength Precast Concrete

Manufactured using reinforced concrete to ensure:
✔ High load-bearing capacity
✔ Long service life
✔ Resistance to weather and site conditions

🏭 Factory Quality Control

Produced under ISO 9001:2008 standards, ensuring:
✔ Consistent quality
✔ Accurate dimensions
✔ Reliable performance

🏗️ Site Preparation Requirements

Because the plinth weighs around 18 tons, proper base preparation is very important.

📐 Recommended Setup:

✔ Crusher Run Layer: 300 mm (fully compacted)
✔ Sand Bedding Layer: 100 mm (levelled surface)

👉 This ensures:

• Stable support
• Even load distribution
• Reduced settlement over time

🔧 How It’s Installed (Simple Site Flow)

1️⃣ Prepare base (crusher run + sand layer)
2️⃣ Deliver plinth to site
3️⃣ Lift and position using crane
4️⃣ Connect cables through ducting
5️⃣ Install removable slabs
6️⃣ Set up bollards for protection

👉 Compared to traditional casting, this method is much faster and cleaner.

⭐ Why Contractors Prefer This System

⚡ Faster Project Completion

No waiting for concrete curing on-site.

🏗 Better Quality Control

Factory production ensures consistent strength.

🦾 Strong & Durable

Handles heavy substation loads easily.

🔧 Easy Maintenance Access

Removable slabs save time during servicing.

🔌 Cleaner Cable Management

Built-in ducting simplifies electrical work.

🇲🇾 Built for Malaysia Conditions

This system is ideal for local projects because it:
✔ Meets TNB requirements
✔ Handles outdoor weather conditions
✔ Reduces labour dependency
✔ Speeds up construction timelines

❓ People Also Ask (FAQ)

💬 What is a CSU plinth used for?

It is used as a foundation base for compact substation units, supporting electrical equipment safely and securely.

💬 Why use precast plinth instead of cast in-situ?

Precast offers:
✔ Faster installation
✔ Better quality control
✔ Less site work and mess

💬 How heavy is a CSU plinth?

The main unit weighs approximately 18 tons, making it very stable and durable.

💬 Can the cover slabs be removed?

Yes, all cover slabs are designed for easy removal, allowing maintenance and cable access.

💬 What base preparation is required before installation?

Typically:

• 300 mm compacted crusher run
• 100 mm sand bedding

💬 Is it suitable for outdoor use?

Yes. It is made from reinforced concrete and designed for long-term outdoor performance.

💬 Does it meet TNB standards?

Yes. It is designed specifically for TNB Compact Substation Unit applications.

🏁 Final Summary

If your project requires a reliable, fast, and professional substation foundation, the TNB CSU Plinth is a proven solution.

It offers:

✔ Strong structural support
✔ Faster installation time
✔ Easy maintenance access
✔ Organized cable routing
✔ Long-term durability

Catalog

👉 A practical and efficient choice for modern infrastructure projects in Malaysia.
